    Product detailed description

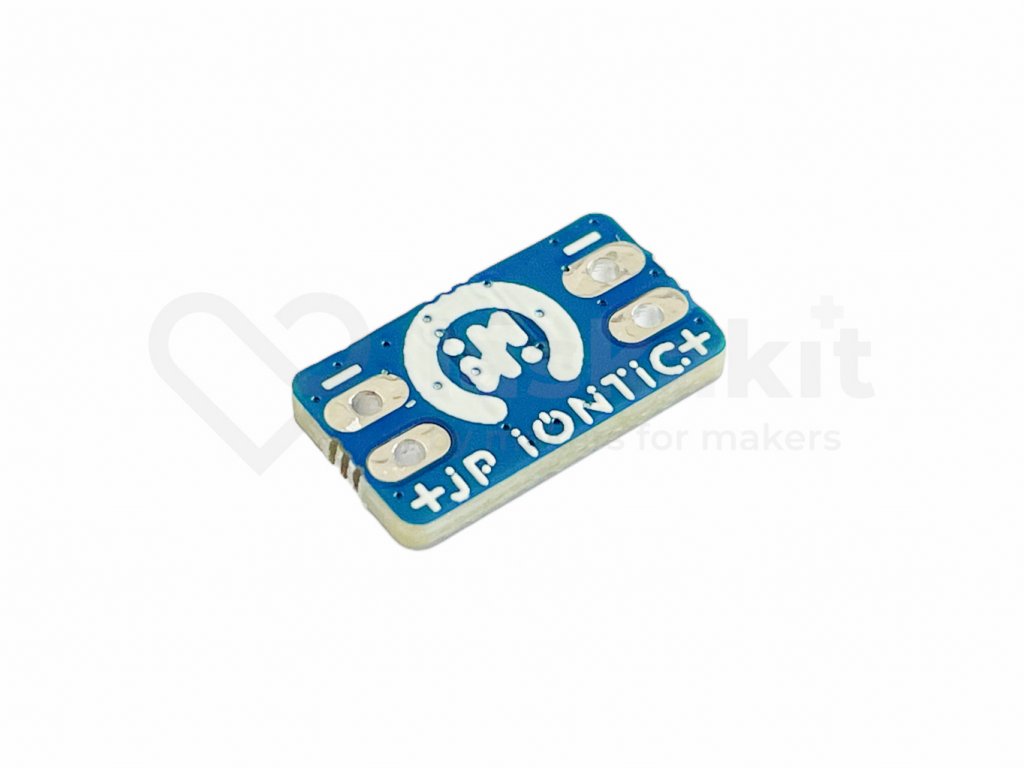

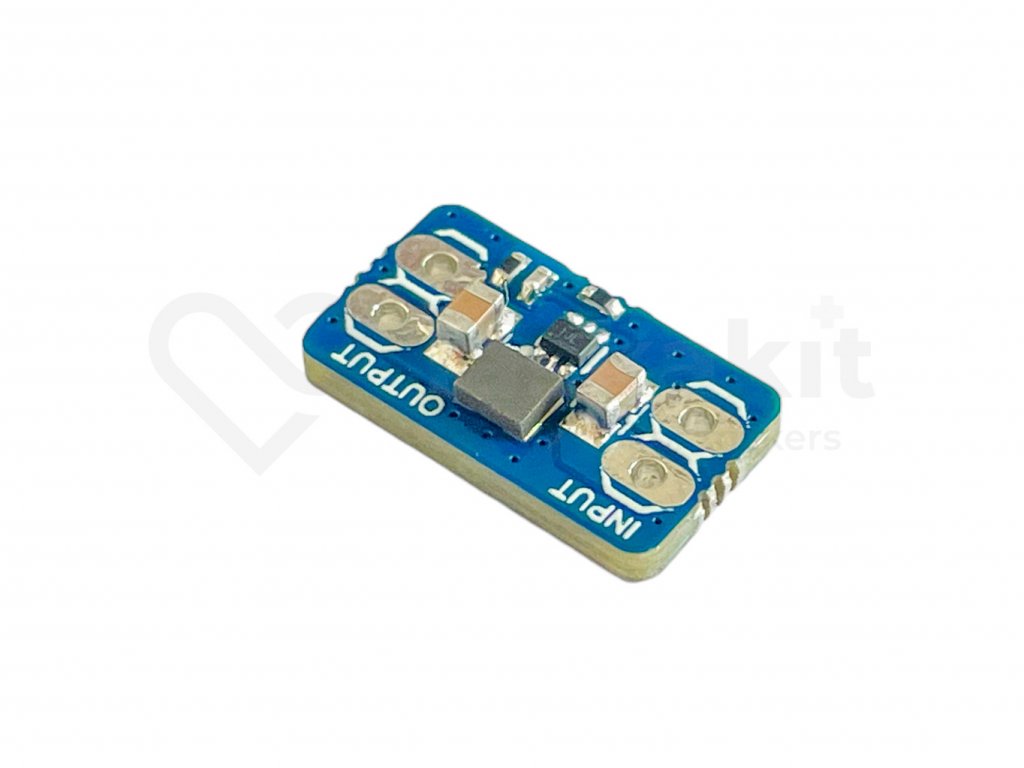

    JP332A is a very efficient switching voltage regulator module. Using Texas Instrument's TPS62A02 integrated chip, the module achieves up to 96% efficiency. Input voltage ranges from 3V to 6V. The output voltage is fixed at 3.3V. The whole circuit is mounted on a very small PCB with dimensions 14mm by 8mm.

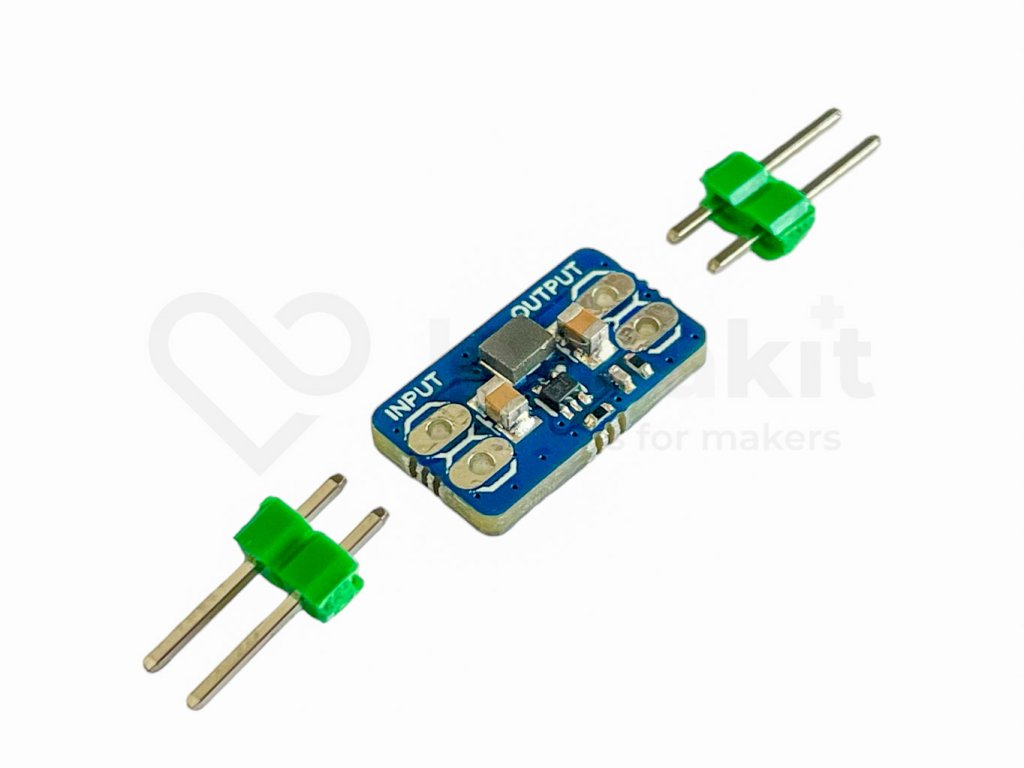

    The PCB also includes holes for mounting a header with a pitch of 2.54mm.
    The size of the PCB allows it to be mounted in a non-soldering field for powering components.

    Specifications:

    • IO: TPS62A02
    • 3.3V to 5.5V input voltage
    • Output voltage 3.3V
    • Maximum output current 2A
    • 1% accuracy of output voltage value
    • Efficiency up to 96%
    • Quiescent current <25μA
    • Dimensions 14x8 mm

    Included in delivery:

    • 1pc JP IonTic JP332A Step-down converter TPS62A02 3-6V 3.3V/2A

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Retired
    Warranty: 2 years
    Weight: 0.002 kg
    Output voltage fixed: 3.3V
    Max. output current: 1-3A
    Constant current function: ne
    Input voltage max.: 5-12V
    Input voltage min.: Up to 4V
    Output voltage min.: 3-5V
    Max. Power: 5-12W
