Stepper motor NEMA 17 17HS2408 0.12Nm, 28mm

Product detailed description

The NEMA 17 17HS2408 stepper motor is a bipolar two-phase stepper motor with a holding torque of 0.12 Nm (12 N·cm), designed for the lightest loads in the range – smaller CNC mills, 3D printers, and DIY projects with minimal force requirements.

It operates with a step angle of 1.8° (200 steps per revolution) and connects via 4 wires to common drivers such as the A4988 or DRV8825. With a body length of 28 mm and a weight of 150 g, it is the weakest and one of the most compact variants offered by LaskaKit. The connection cable is not included; it can be purchased separately – see recommended accessories below.

Specifications:

• Type: bipolar two-phase NEMA 17 stepper motor
• Step angle: 1.8° (200 steps/revolution)
• Rated current: 0.6 A/phase
• Phase resistance: 8 Ω
• Phase inductance: 10 mH
• Holding torque: 12 N·cm (0.12 Nm)
• Detent torque: 1.6 N·cm
• Number of wires: 4 (bipolar connection)

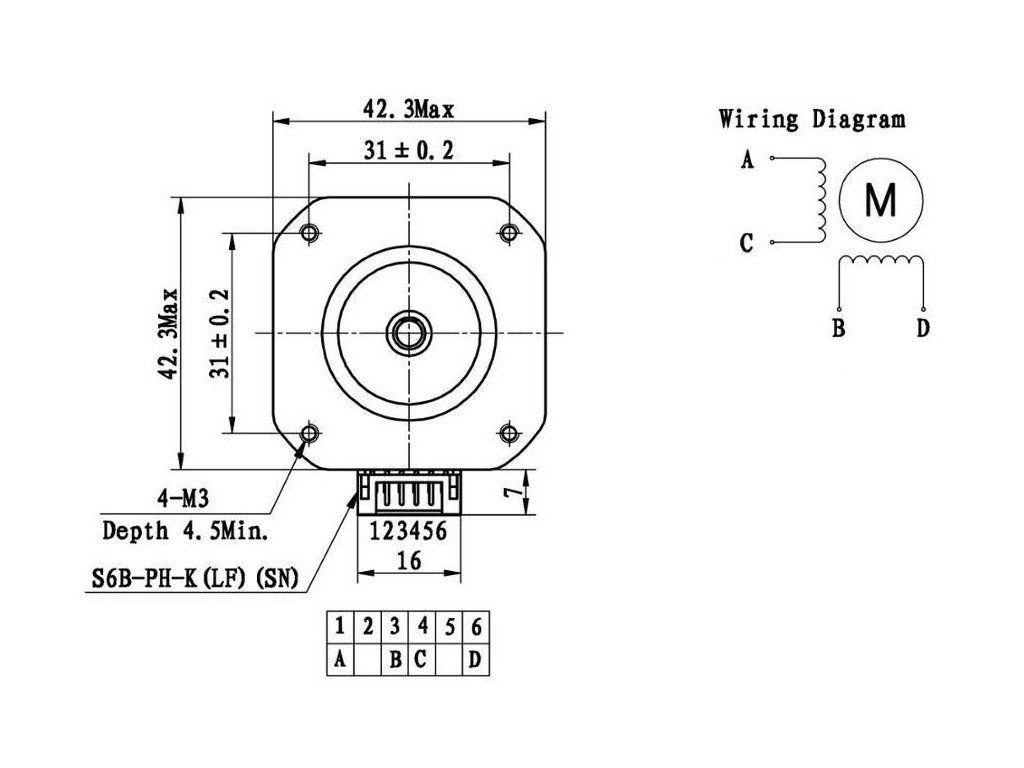

• Dimensions:
  • Motor length: 28 mm
  • Weight: 150 g
• Compatibility: Arduino and other MCUs via A4988, DRV8825 or similar drivers; RAMPS 1.4, CNC Shield V3 boards, etc.
• Other variants offered by LaskaKit:
  • 17HS4023 – 0.14 Nm, length 23 mm
  • 17HS3401 – 0.28 Nm, length 34 mm
  • 17HS4401 – 0.4 Nm, length 40 mm
  • 17HS8401 – 0.5 Nm, length 48 mm
• Recommended Accessories:
  • Connection cable with JST-XH connector, 1 m
  • Connection cable with Dupont connector, 1 m
  • A4988 driver for stepper motors
  • DRV8825 driver for stepper motors

Package contents:

• 1× NEMA 17 17HS2408 Stepper Motor - 0.12Nm, 28 mm

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
