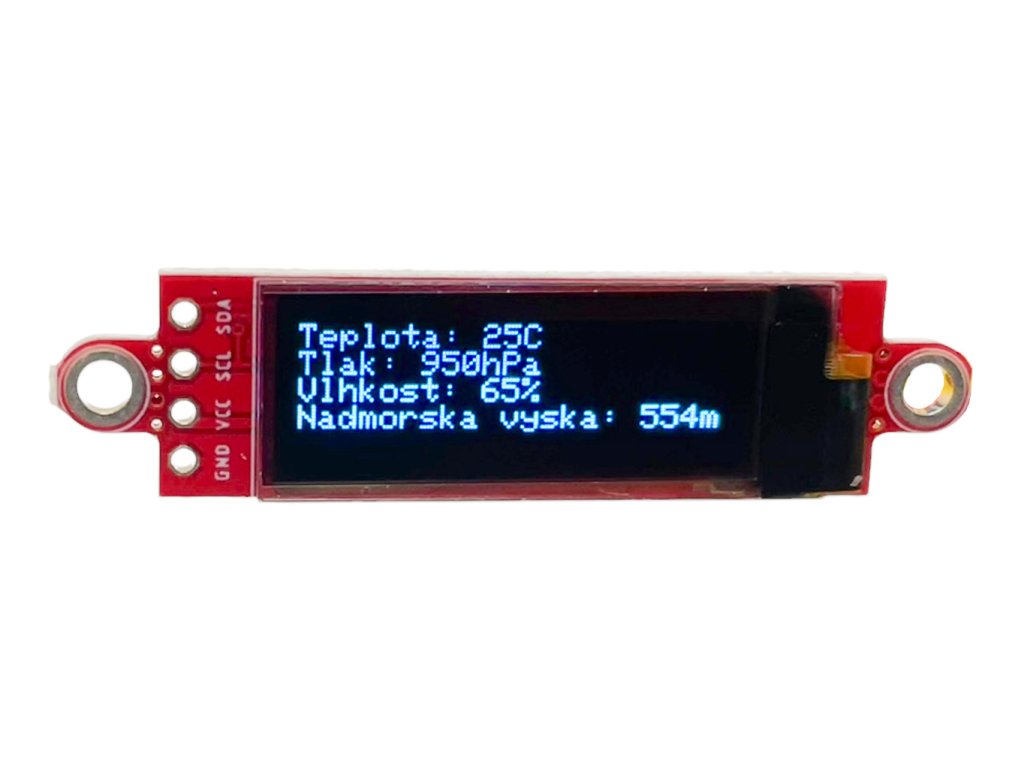

LaskaKit OLED display 128x32 0.91" I²C

Product detailed description

We have many modules and boards that support our uSUP connector (compatible with Qiik and Stemma). You can measure temperature/humidity using SHT40, pressure using BME280, CO2 using SCD41, and now we would like to introduce the 0.91" OLED with a µŠUP connector, which also includes a socket for a 2.54mm connector.

The input power supply voltage range is really large - from 3.3 to 5 V. The I2C bus contains 10k pull-up resistors. Resolution: 128x32 Chip: SSD1306

Specifications:

• Chip: SSD1306
• Resolution: 128x32 points
• Connection: I²C (Address is 0x3c)
• Working voltage: 3.3-5V
• Working current: 50mA (max)
• Dimensions: 48.3(38)x12.1mm

Included in delivery:

• 1pc LaskaKit OLED display 128x32 0.91" I²C

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
