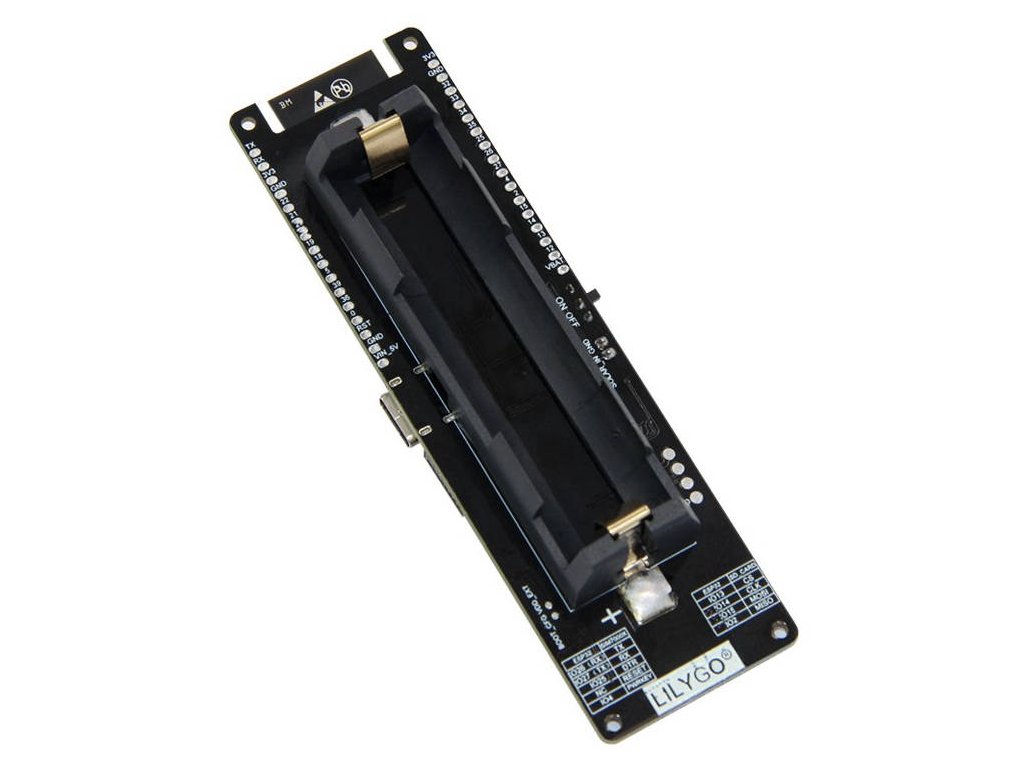

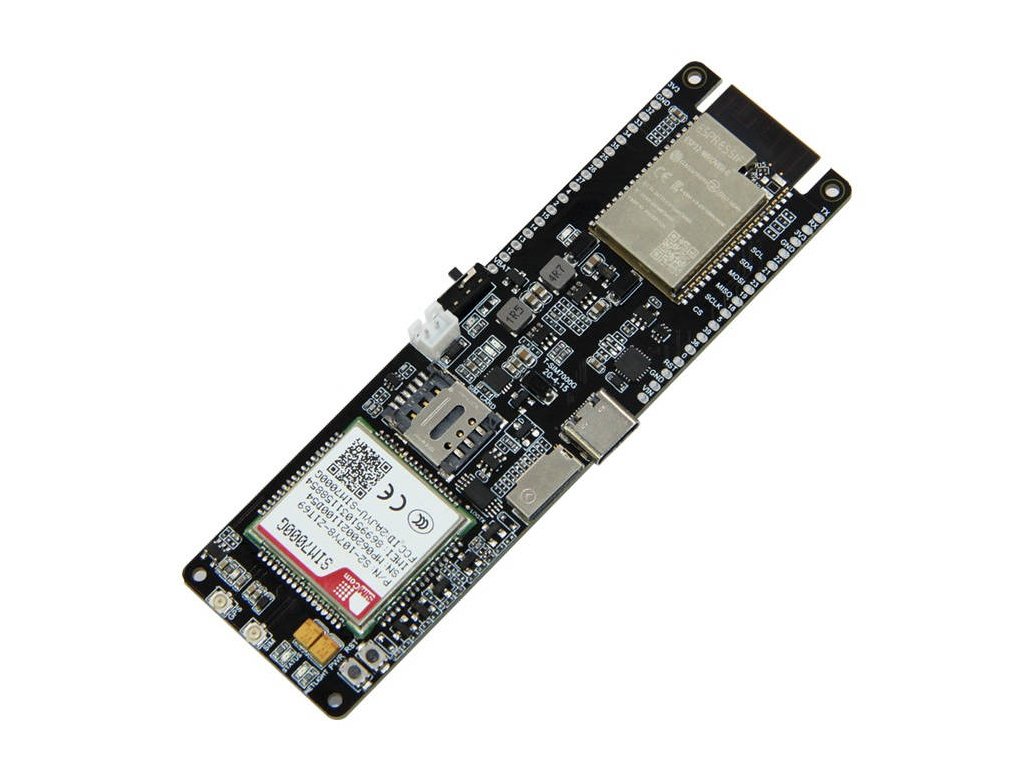

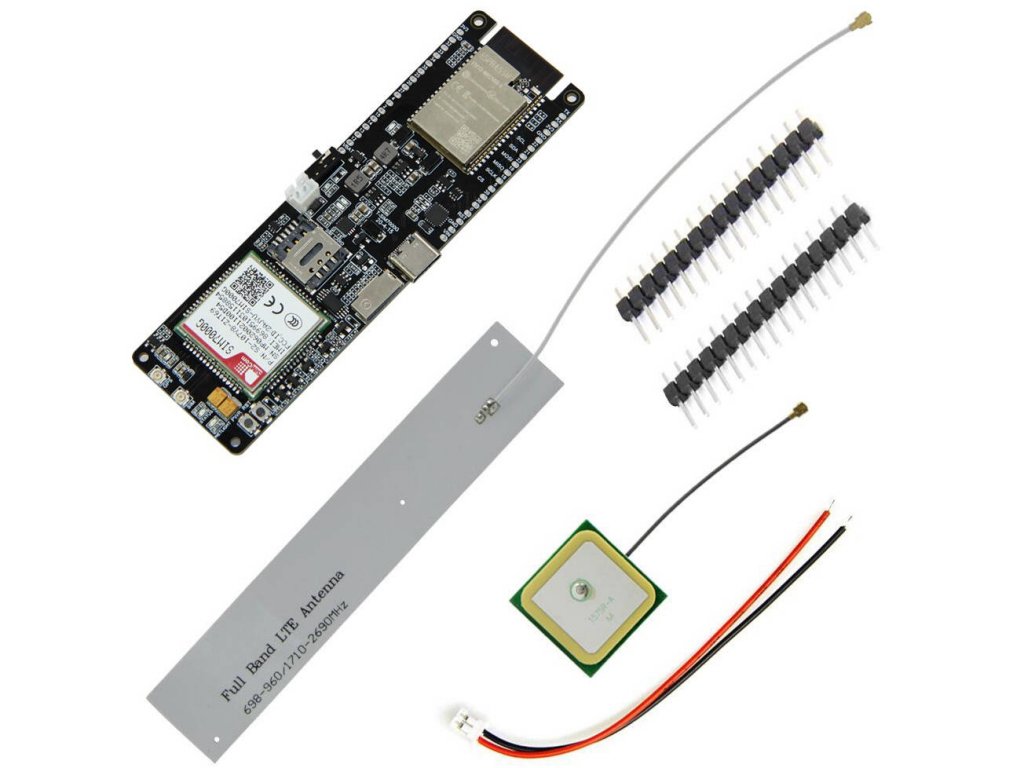

LilyGO TTGO T-SIM7000G ESP32-WROVER-B 18560 Solar

Detailní popis produktu

LilyGO TTGO T-SIM7000G ESP32-WROVER-B 18560 Solar

Specifikace:

Hardware Specifications

• Main chip: ESP32
• Module: ESP32-WROVER-B, SIM7000G
• Interface:USB,SD Card,Solar Input interface
• Flash Memory: 4M Flash / 8M PSRAM
• Button: Reset,Power switch
• USB to TTL: CP2104
• Car Clock: 40MHz
• SIM Card Size: Nano SIM Card

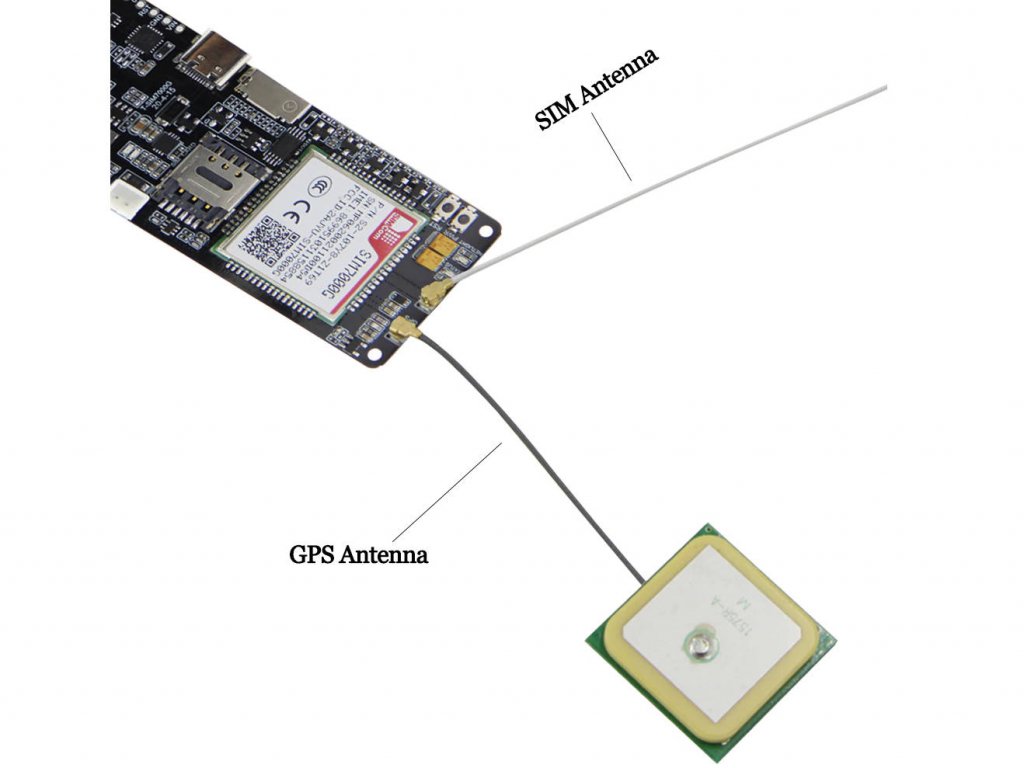

• SIM Antenna
• GPS Antenna
• Operating Temperature Range: -40-85 degrees
• Product Size: 111mm * 37mm * 20mm
• Product Weight: 50g

Power Specifications

• Working Voltage: 5v input
• Solar input voltage range：4-6v
• Working Curent: About 200mA
• Charging Current: 780mA
• Battery Model: 18650
• Battery Holder Model: 18650 battery holder
• JST Connector: 2pin 2mm
• USB: TYPE-C 3.0

Wi-Fi

• Standard ：FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
• Protocol ：11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
• Frequency ：range 2.4GHz~2.5GHz(2400M~2483.5M)
• Transmit Power ：22dBm
• Communication distance : 30m

Bluetooth

• Protocol meet Bluetooth : v4.2BR/EDR and BLE standard
• Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
• Audio Frequency : CVSD&SBC audio frequency

Software Specification

• Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P
• Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS
• Encryption Type : AES/RSA/ECC/SHA
• Firmware Upgrade :UART download/OTA（Through network/host to download and write firmware）
• Software Development : Support cloud server development /SDK for user firmware development
• Networking Protocol : IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
• User Configuration : AT + Instruction set, cloud server, android/iOSapp
• OS : FreeRTOS

Součástí dodávky:

• 1ks LilyGO TTGO T-SIM7000G ESP32-WROVER-B 18560 Solar

Poznámka:

• Tento výrobek není samostatně funkčním celkem a může vyžadovat odbornou montáž.
• Fotografie výrobků jsou pouze ilustracemi na ukázku a někdy se mohou lišit od skutečného vzhledu předmětu. Avšak toto nemění jejích základní vlastnosti.
