    Controller for brush DC motors 3-9.4V 20A

    Code: LA143086
    3 ratings
    Controller for brush DC motors 3-9.4V 20A
    €6,13 €5,07 excl. VAT
    In stock (12 pcs)
    Delivery to:
    09/12/2025

    Controller for DC brush motors 3-9.4V 20A powered from battery packs, e.g. for motors of larger drones etc.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    Controller for DC brush motors 3-9.4V 20A powered from battery packs, e.g. for motors of larger drones etc.

    Specifications:

    • Functions: forward, reverse, brake
    • Supply voltage: 3 - 9.4V (Li-Po 2S/Ni-Mh/Ni-cd 4-7cell)
    • Constant current 20A Max 25A <30s Pulse 50A <5s
    • Control signal: PWM 5V 2kHz
    • Brake On- with brake, Brake Off- off
    • BEC output: 5V/1A linear
    • Working temperature range: -20-85℃
    • Module dimensions: 35x22x6mm

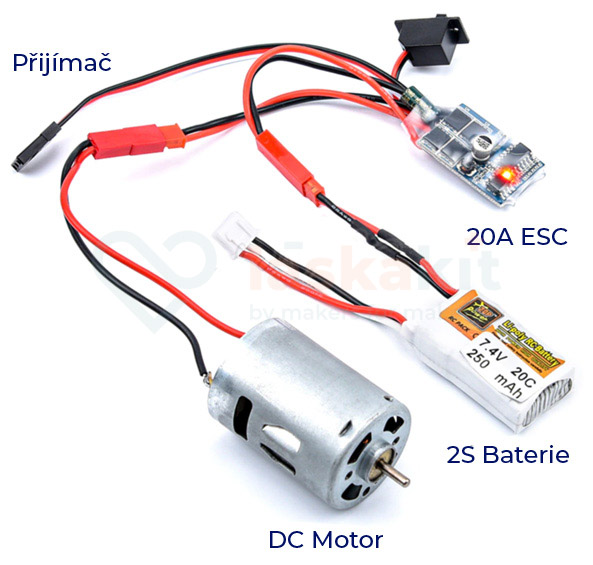

    ESC-20A-decr

    Included in delivery:

    • 1pc Controller for brush DC motors 3-9.4V 20A

    Remark:

    • The controller is not suitable for controlling low power motors.
    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Motor Drivers
    Warranty: 2 years
    Weight: 0.014 kg
    H-můstek BTS7960B 43A, motorový modul
    H-bridge BTS7960B 43A, motor module
    In stock (26 pcs)
    €6,09 excl. VAT
    €7,37

    H-bridge for direction and speed control of DC motors with commutators.

    LA143046
    16-kanálový 12-bit PWM-Servo mini shield I2C PCA9685
    16-channel 12-bit PWM-Servo mini shield I2C PCA9685
    Currently not available
    €4,38 excl. VAT
    €5,30

    a 16-channel PWM pin add-on module using the PCA9685 chip, which connects to the board via the I2C bus.

    LA143009
    Easydriver A3967 Driver pro krokové motory
    Easydriver A3967 Driver for stepper motors
    In stock (15 pcs)
    €4,04 excl. VAT
    €4,89

    EasyDriver is a simple but powerful stepper driver based on Allegro's A3967 chip. It allows easy control of bipolar stepper motors using microcontrollers such as Arduino, ESP32,...

    LA143029
    Show all alternative products
    5,0 3 ratings
    5
    3x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:

    List of ratings

    5
    LM Avatar of author | 04/11/2024
    Zatim spokojenost funguje jak má
    5
    MP Avatar of author | 14/10/2024
    Jednoduchý. Žádné složité programování s hlavně cena spokojenost!
    5
    JČ Avatar of author | 13/11/2023
    Funguje jal má
    Do not fill out this field:

    List of discussions

    I Avatar of author Nesrovnalosti v popisu funkce 09/10/2025 12:39
    V popisu řadiče uvádíte pwm signálem 2 kHz, ale v přiloženém videu je zobrazen provoz s RC soupravou nebo servo testerem. Co teda řadič umí zpracovat? Děkuji Igor
    IŠ Avatar of author Signál servořízení 10/10/2025 17:22
    Dobrý den, signál ze servo testeru není 2 kHz. Je stejně jako u většiny RC souprav impuls 1-2 mS s opakováním po cca 20 mS. Proto jsem se dotazoval, která informace je správně. Pokud máte v nabídce i servotester, bylo by snadné to ověřit. Děkuji Igor
    MF Avatar of author Nesrovnalosti v popisu funkce 10/10/2025 07:44
    Dobrý den, údaj jsme převzali z dostupných materiálů k řadiči. Zřejmě má být údaj "do 2kHz", protože jej lze opravdu ovládat i servotesterem.
