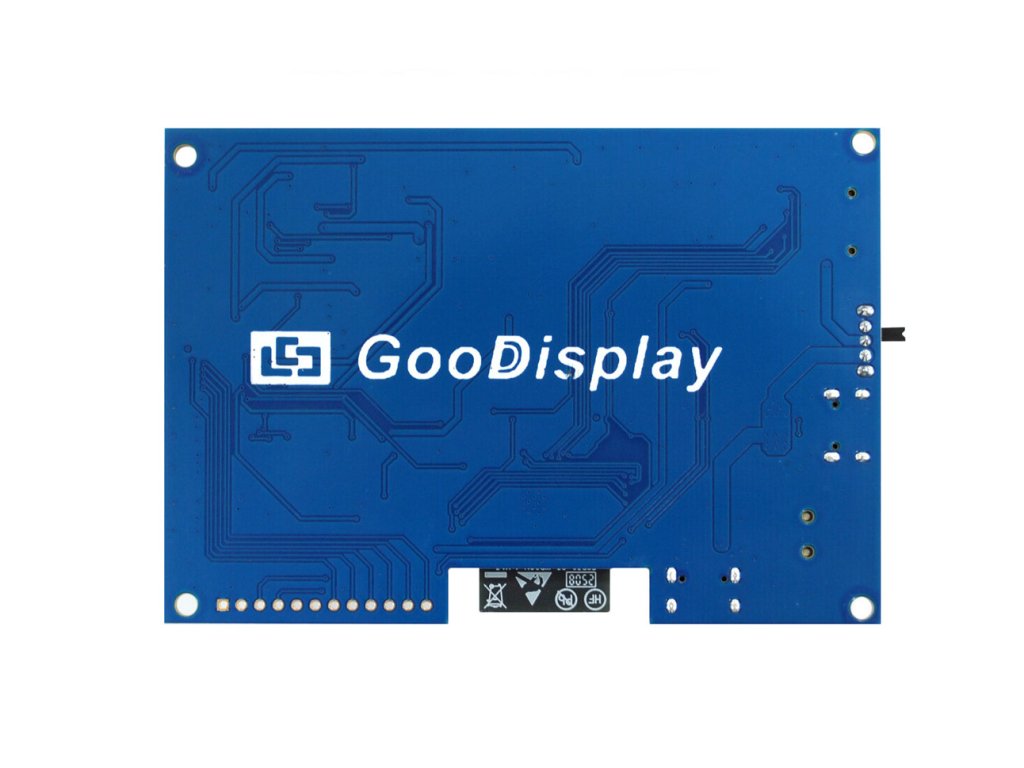

Good Display ESP32-133C02-IL ESP32-S3 development board for 7.09" and 13.3" QSPI E6 colour e-Paper displays

Product detailed description

The Good Display ESP32-133C02 development board is specifically designed to control Spectra 6 series colour E Ink displays, such as the GDEP133C02 model with a 13.3" diagonal. Thanks to the integrated ESP32-S3 microcontroller, it offers flexible image transfer options via USB, Wi-Fi, or from an SD card, making it an ideal choice for low-power industrial information panels, smart retail solutions, and IoT applications. It supports development in both the Arduino IDE environment and ESP-IDF. Additionally, it features an image dithering tool that ensures smooth colour transitions and sharper details.

Specifications:

• Model: ESP32-133C02
• Function: Control of 13.3" and 7.09" colour E Ink Spectra 6 displays
• Microcontroller: ESP32-S3
• Development environment: Arduino IDE, ESP-IDF
• Compatibility: 60-pin QSPI connector
  • Good Display GDEP133C02 – 13.3", 1600 × 1200 px
  • Good Display GDEB0709E01 – 7.09", 1600 × 1200 px
• Dimensions: 90 × 64 × 5 mm
• Power: Via USB Type-C adapter or Li-Ion battery with charging via Type-C
• Example program: Basic code for image restoration / demo application
• Operating temperature: 0 °C to 50 °C
• Main use:
  • E-paper display control training
  • Testing and evaluation of e-paper display performance
  • Secondary development: SD card storage, Wi-Fi & BLE functions, USB communication

Package contents:

• Good Display ESP32-133C02 development board

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product photos correspond to the real product, but in exceptional cases may differ, for example in colour.
